• Structured Cabling

ODGYTS Series

4-144 Cores Corrugated Steel Tape Armoured PE-UV Black Outdoor Fiber Optic Cable

Installation: aerial, duct Structured features: metallic central strength member(phospheted steel wire), double plastic-coated corrugated steel tape - PE bonded outer sheath.

Peformance characteristics: excellent crush resistance with steel tape armor, sound bullet-proof performance.

Application: long-haul communication, communication between stations, especially suitable for application with high requirement of crush resistance like aerial installation.

ODGJPFJH Series

Multi-Core Distribution Indoor Fiber Optic Cable

• Excellent mechanical and environmental properties
• Excellent flame-retardant performance
• Excellent mechanical performance of the cable sheath
• Soft, flexible, easy for splicing
• Comply with standard YD/T 1258.4-2005

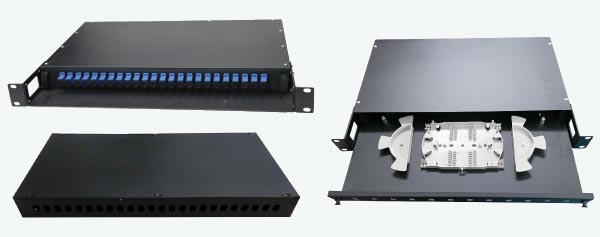

Fiber Patch Panels

Fiber Rack Mount Patch Panel with Adapters

Most widely used premium panels for datacentre applications. the light weight and easier fictures enable installation ease and smooth terminations. This fiber rack mount metal enclosure is preloaded with snap-in fiber adapters.

ODGYXTW Series

Unitube Outdoor 2-96 Cores Fiber Optic Cable

• Good mechanical and temperature performance
• High strength loose tube that is hydrolysis resistant
• Special tube filling compound ensure a critical protection of fiber
• Crush resistance and flexibility
• PSP enhancing moisture-proof
• Two parallel strength members ensure tensile strength
• Small outer diameter, light weight and friendly installation
• Long delivery length

ODWMOP-SC Series

4~24 Port Fiber Termination Box come with SC Adapters

• Total enclosed structure
• Material: PC+ABS
• Wet-proof, water-proof, dust-proof, anti-aging
• Protection level up to IP65
• Clamping for feeder cable and drop cable, fiber splicing, fixation, storage, distribution all in one
• Suitable for SC and LC duplex adapter and pigtail
• Easy to operate
• Suitable for both outdoor and indoor use
• Protects and manages cable effectively

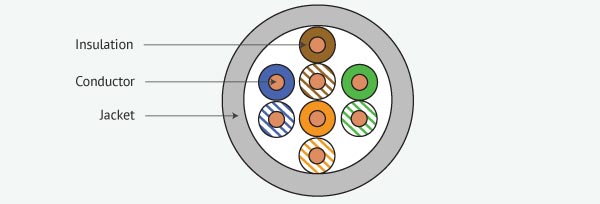

OD5000 Series

24AWG CAT5E UTP Network Cables

Each Cat5E UTP cable is performance optimized with 4 balanced twisted pairs on 24 AWG insulated solid bare copper conductors. OD Cat5E UTP cables are constructed to create a round and flexible cable for easy pulling and stripping of the PVC jacket.

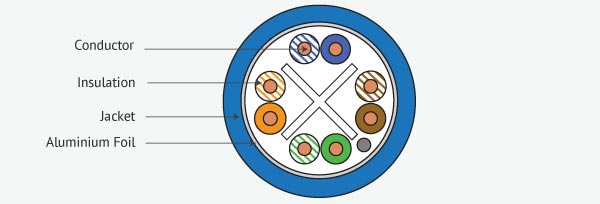

OD6823F

23AWG CAT6 FTP Network Cable

Each Cat6 FTP cable is performance optimized with 4 balanced twisted pairs on 23 AWG insulated solid bare copper conductors. Each pair is separated by a center spline. OD Cat6 FTP cables are constructed to create a round and flexible cable for easy pulling and stripping of the PVC jacket.

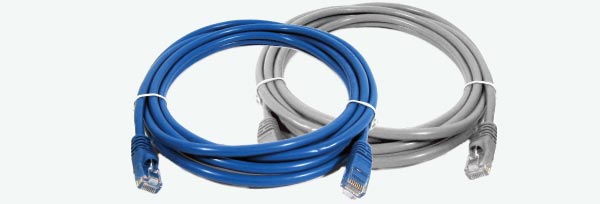

ODPC Series

Stranded Patch Cords

Optic Digital CAT6 UTP patch cord are designed to assure high performance over longer distances. The patch cords are composed of 4-pairs, 24/7 AWG stranded conductors. The patch cords are terminated in factory with 8P8PC 50u" gold plated RJ45 plugs, boots are molded onto RG45 plug to ensure better connection. All patch cords are 100% tested in factory to ensure Gigabit performance.

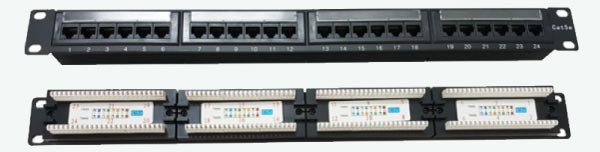

ODPP Series

24-Ports Full Loaded UTP Patch Panels

The OD 24-ports patch panels offer cost-effective solution to achieve high performance that exceeds ANSI/TIA-568 Category CAT5e and CAT6 standards. This horizontal patch panel is designed with rear 110 IDC's for quick and easy punch-down termination. It also comes integrated with a universal label for either 568-A or B wiring. Package includes #12 rack screws.

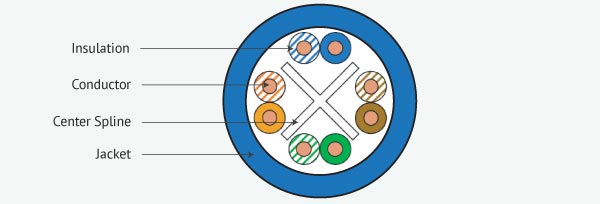

OD6000 Series

23AWG CAT6 UTP Network Cables

Each Cat6 UTP cable is performance optimized with 4 balanced twisted pairs on 23 AWG insulated solid bare copper conductors. Each pair is separated by a center spline. OD Cat6 UTP cables are constructed to create a round and flexible cable for easy pulling and stripping of the PVC jacket.

OD6823PE

23AWG CAT6 UTP Outdoor PE Network Cable

• Conductor: Solid Bare Copper
• AWG: 23
• Conductor Diameter: 0.57mm
• Insulation: HDPE
• Insulation Diameter: 1.02~1.04mm
• Polyester Tap: 25x0.035mm
• Aluminium Tap: 28x0.25mm
• Plastic Separator: 4.2x0.45mm
• Sheath: LLDPE
• Sheath Diameter: 9.0mm
• Color: Black

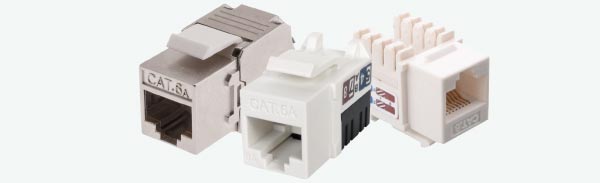

ODKJ Series

RJ45 Network Keystone Jacks

The OD eystone jacks are designed to meet the industry standard TIA/EIA 568-C.2 requirements, it works in conjunction with the cables to go faceplates and surface boxes or any standard keystone and angled multimedia faceplate or patch panel. Each keystone jack includes 110-type IDC straight-back termination with strain relief caps, and comes with standard gold plating on the jack contacts.

ODRG5981

RG59 20AWG 75Ω Coaxial Cable

• RG59 20AWG 75Ω coaxial cable
• 20AWG 0.812mm bare copper covered steel conductor
• Foam polyethylene insulation
• Foil & aluminium braid shield
• PVC jacket

ODRG6102

RG6 18AWG 75Ω Coaxial Cable

• RG6 18AWG 75Ω coaxial cable
• 18AWG 1.02mm bare copper covered still conductor
• Foam polyethylene insulation
• Foil & aluminium braid shield
• PVC jacket

ODRG5973F

RG59 22AWG 75Ω Stranded Coaxial Cable

• RG59 22AWG 75Ω stranded coaxial cable
• 22 AWG stranded (7x30) .030" bare copper conductor
• Foam polyethylene insulation
• Bare copper braid shield (95% coverage)
• PVC jacket

ODRG6102PE

RG6 18AWG 75Ω Outdoor Coaxial Cable

• RG6 18AWG 75Ohm Coaxial Cable
• 18AWG 1.016mm solid bare copper conductor
• Foam high density polyethylene insulation
• Foil & aluminium braid shield (95% coverage)
• PE jacket
